Profiled Composite Panels

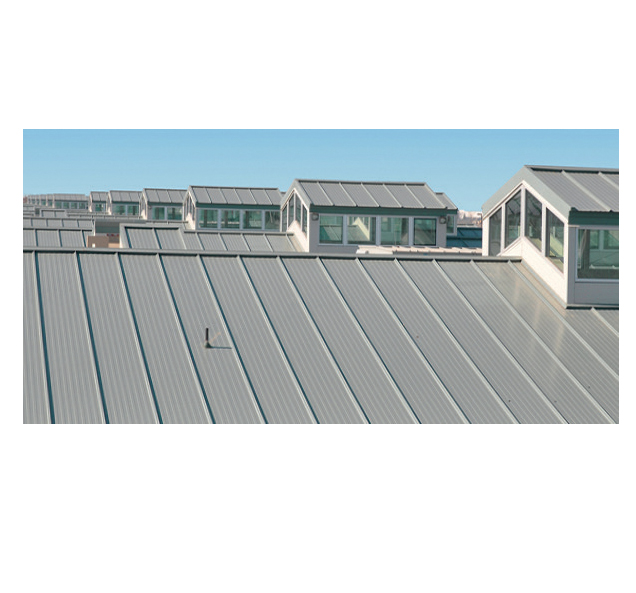

Applications: Roof & Wall Cladding
General Feature:
a) Mechanical Characteristic of the foam at Overall Density of 40(+/-2) kg/m³

  • Tensile Strength : 150~250 kpa
  • Compression Strength : 100~210 kpa
  • Shear Strength : 100~240 kpa
  • Fire property : B3 as per DIN 4102 (B2 & PIR upon request)

b) Insulation Capacity

  • K value (Thermal conductivity of PU) : 0.019 W/mK
  • Tolerence : +/-0.002
Polyrethane Core (mm) Thickness T = 30 T = 35 T = 40 T = 50 T = 60 T = 80 T = 100
Overall Heat Transfer Coefficient ‘U Value W/M2 °C 0.630 0.540 0.475 0.380 0.316 0.237 0.190

c) Water absorption of the foam

  • After 24 hours : 1.0% of Volume

d) Closed Cells : 93%
e) Advisable Length : 3 meters – 14 meters

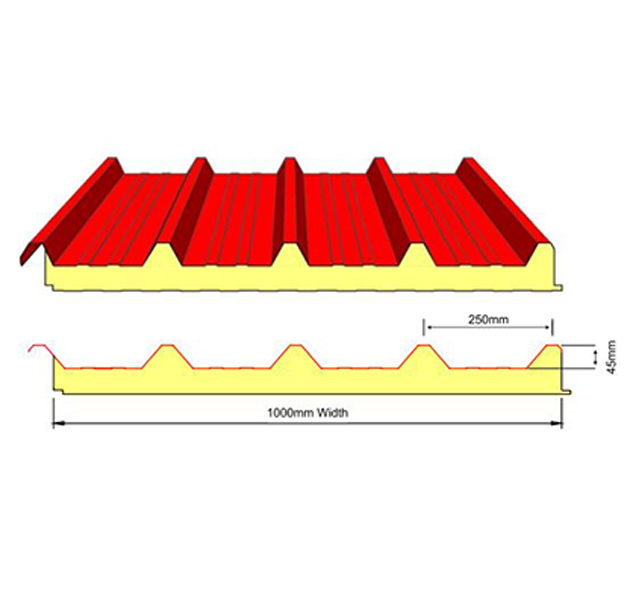

f) Standard width is 1000 mm
